3D-printed EMD SW1500 locomotive (Scale 1:32) for the garden railroad

Christel like American locomotives, and as you know, she also owns a garden railway.
Because I’m still recovering and nog beeing able to spend a lot of time on the mill & lathe,
I decided to print some material for the garden Railway.

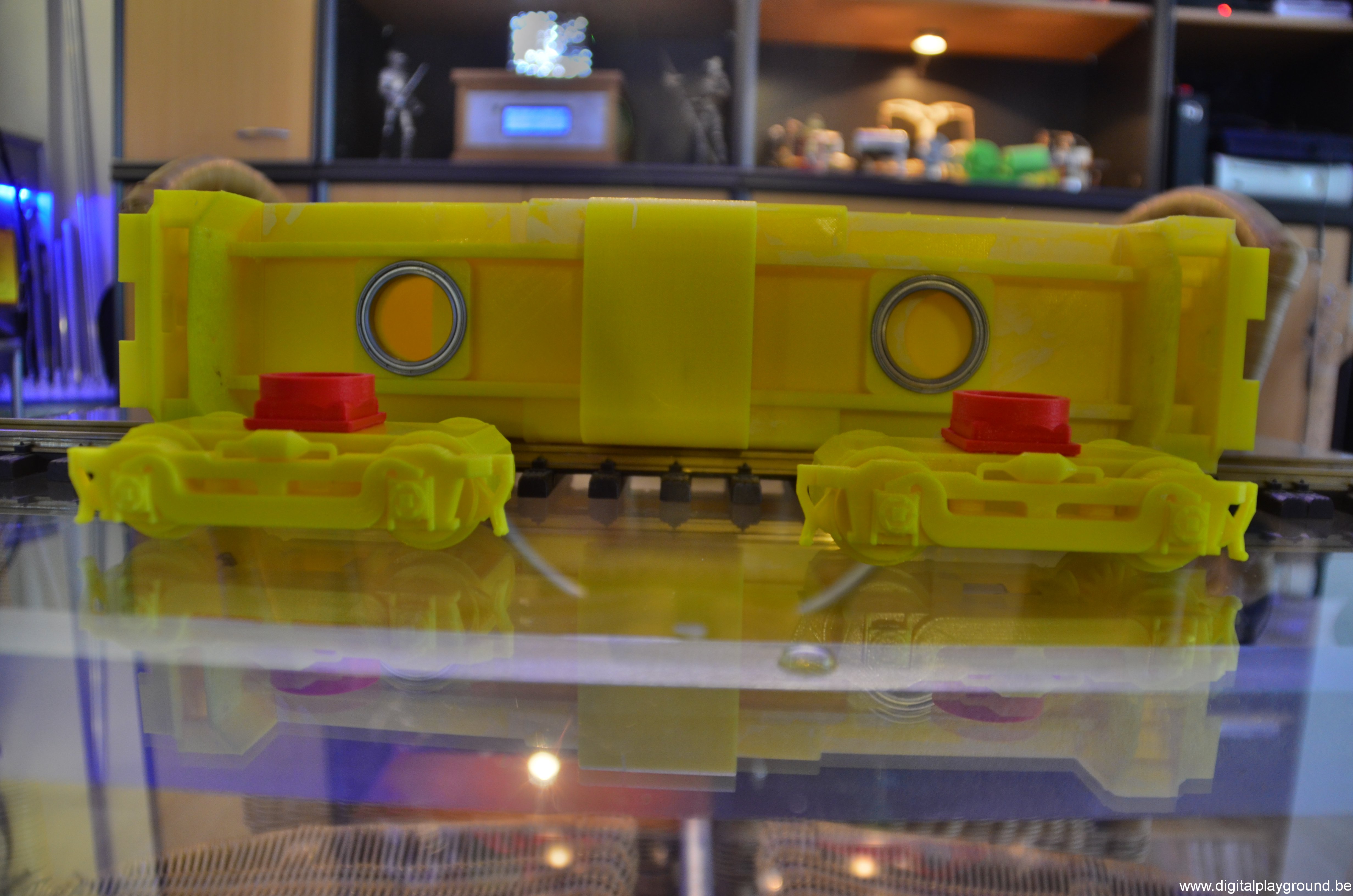

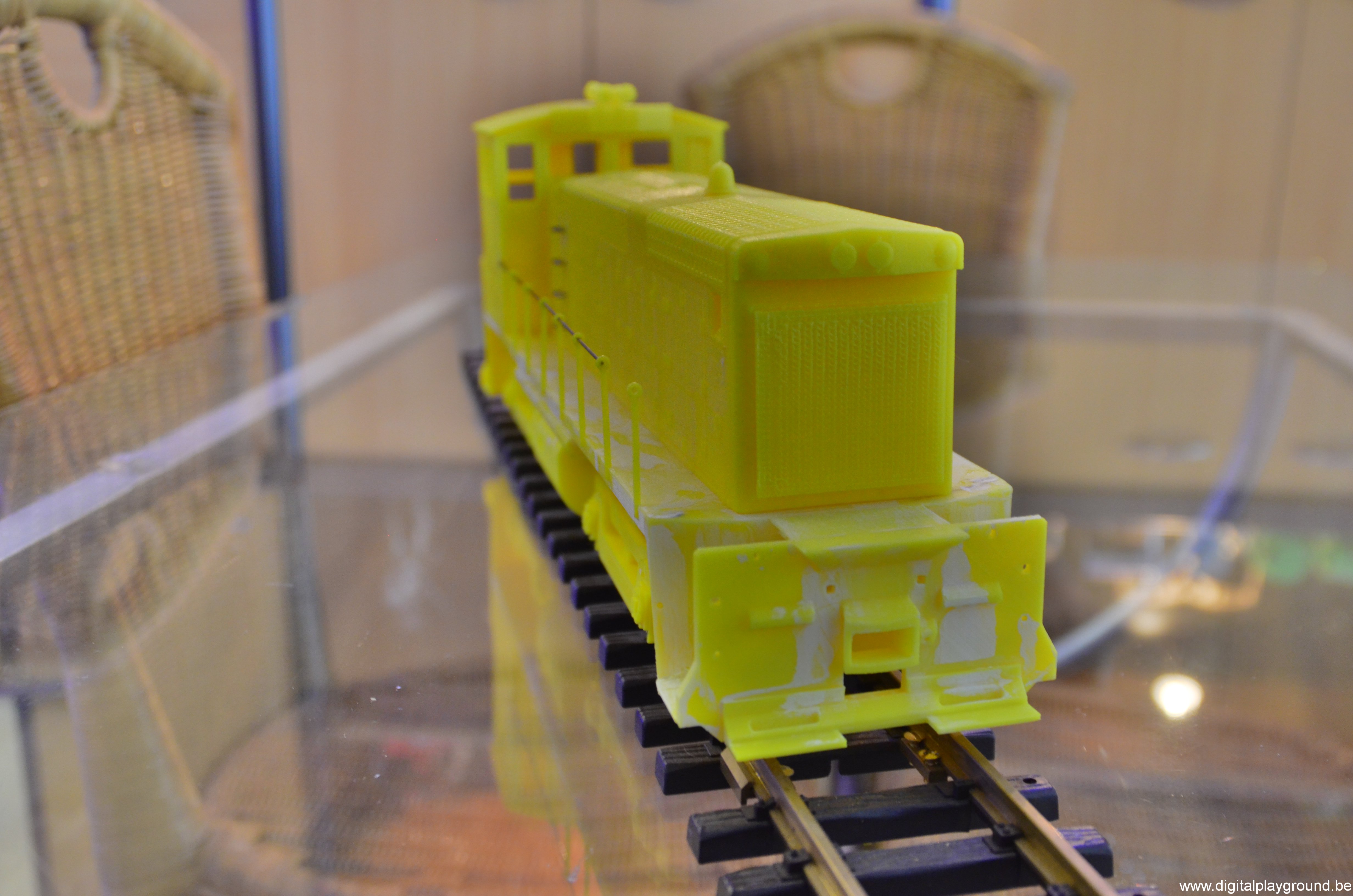

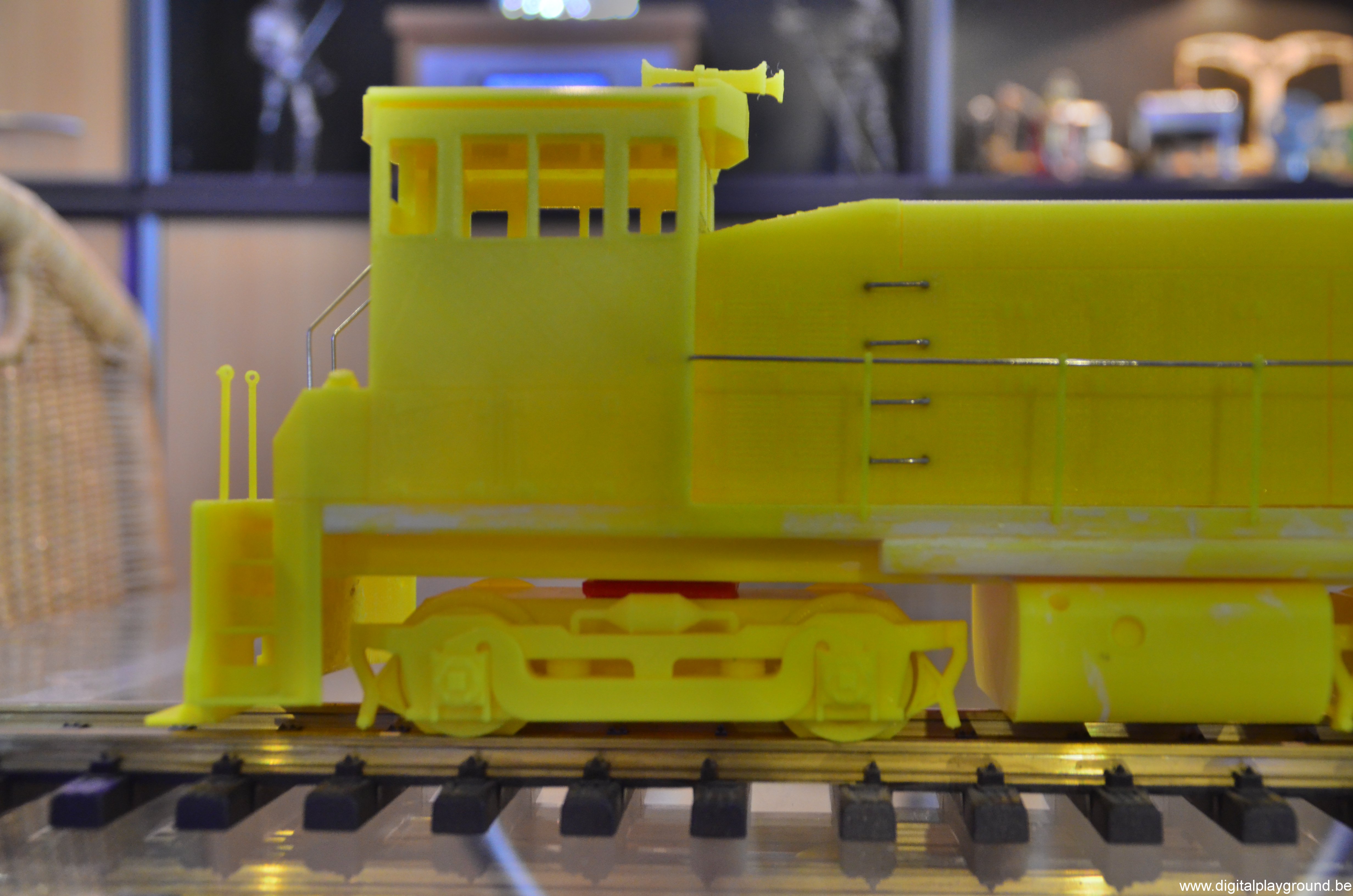

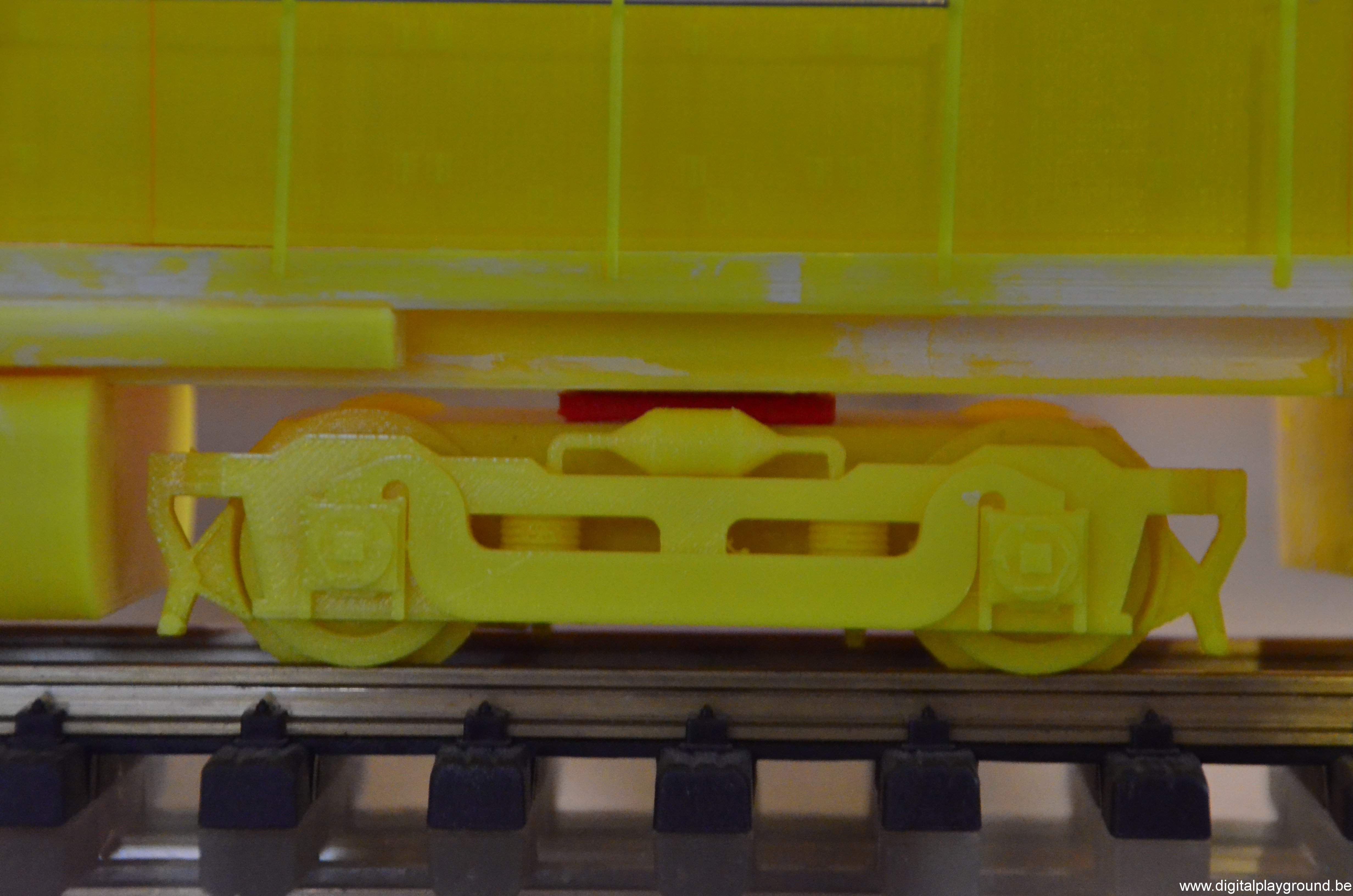

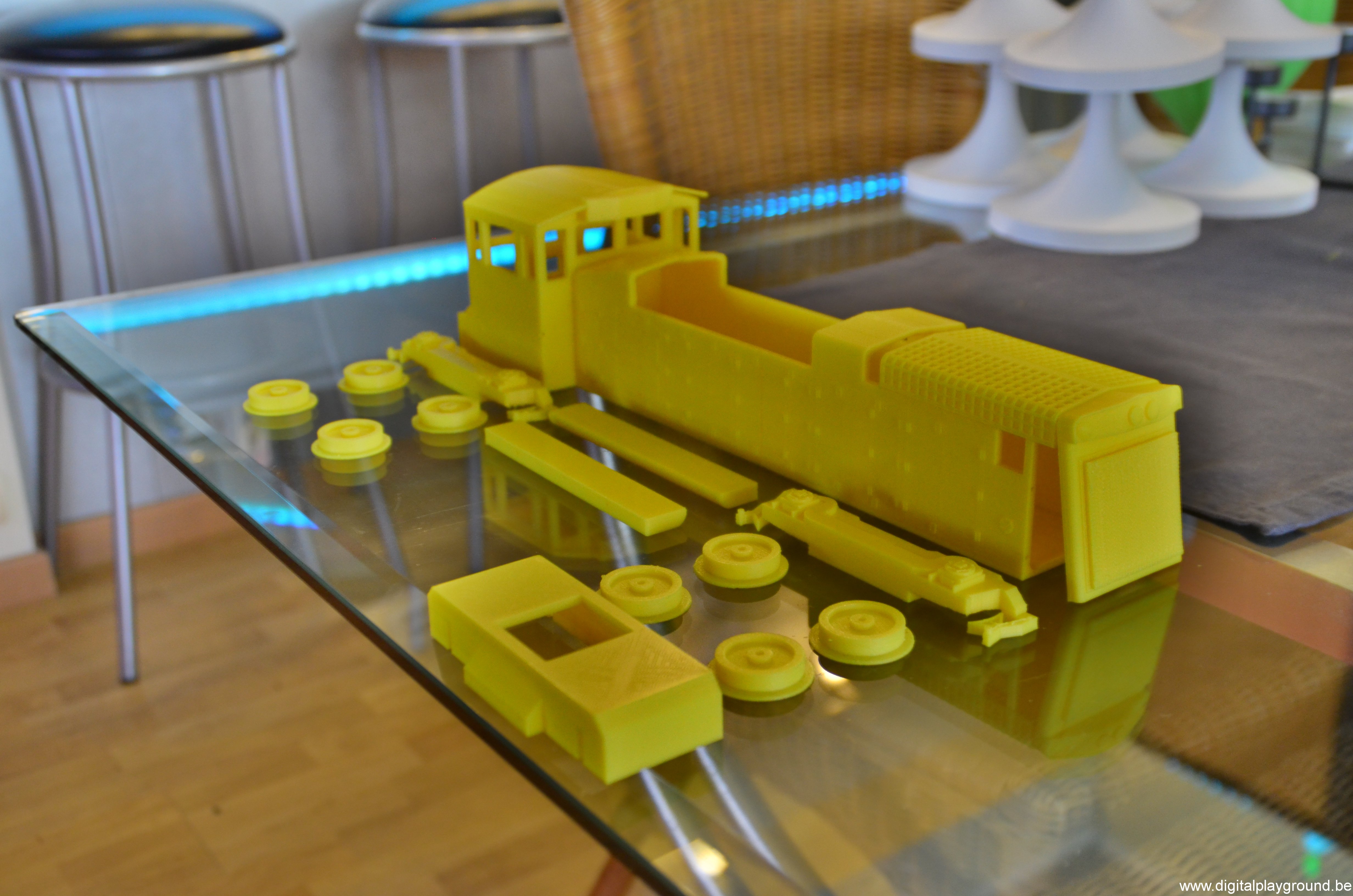

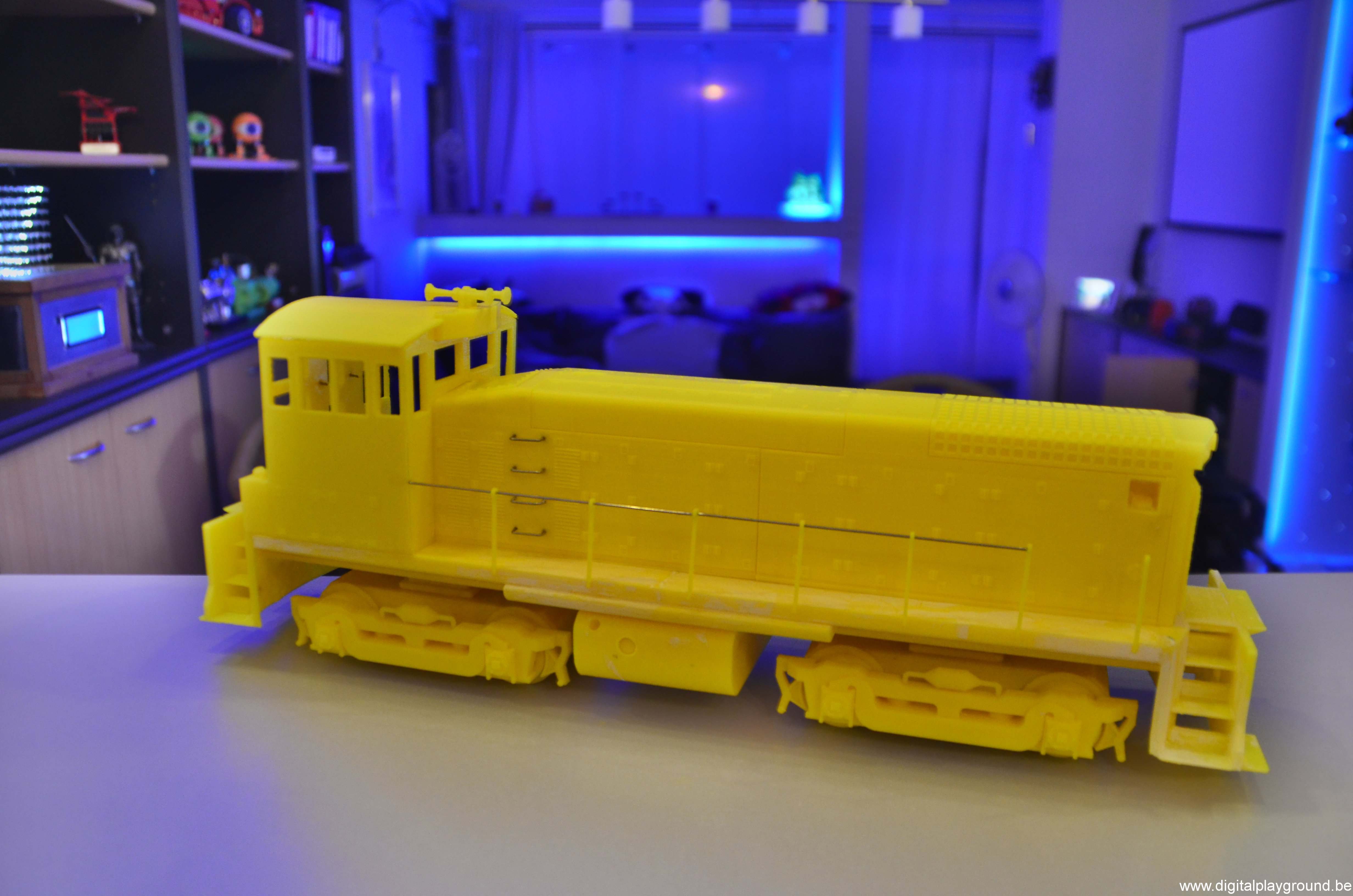

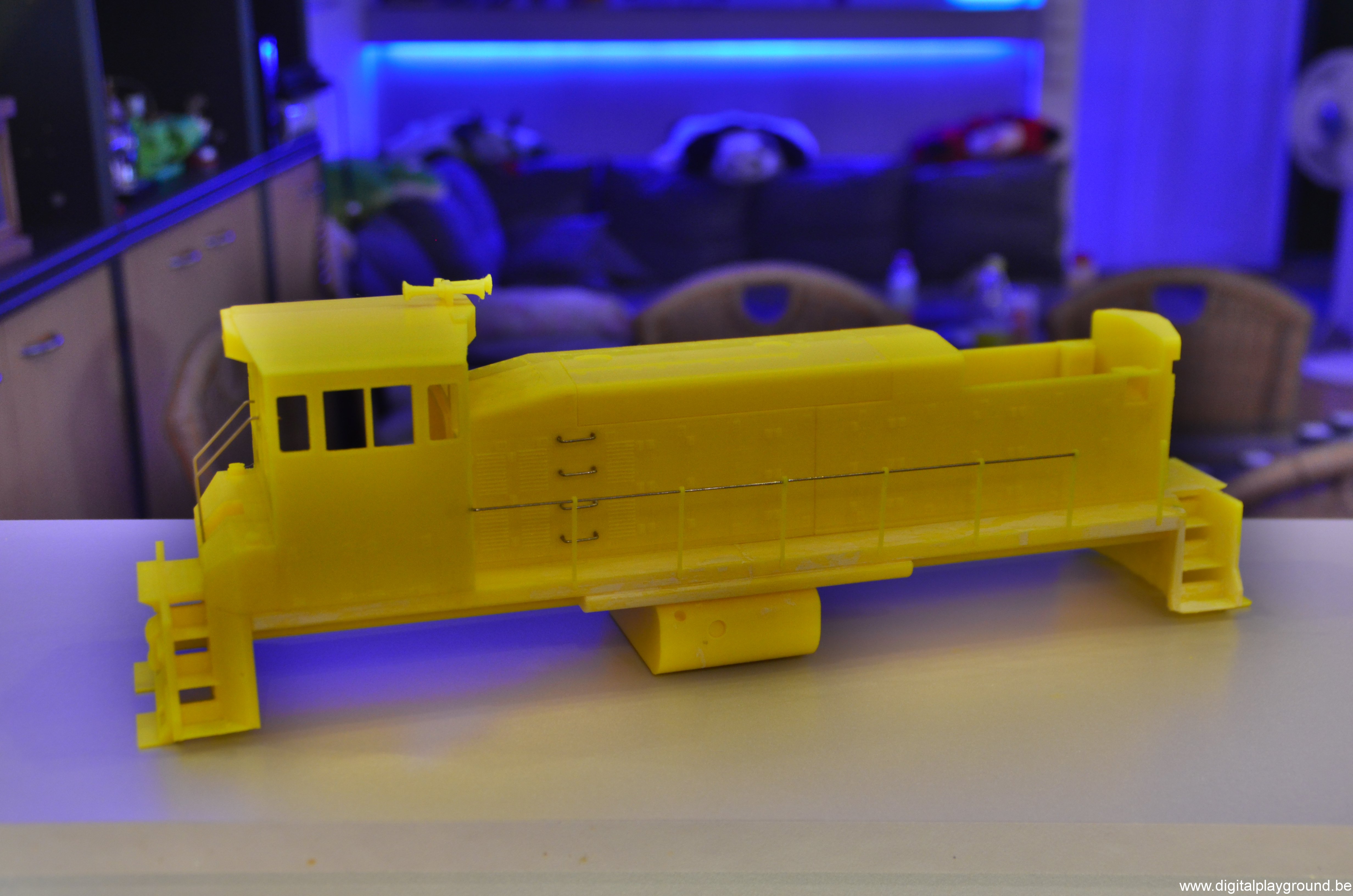

The first one, is an EMD SW1500, scale 1:32, which fits on the 45 mm tracks in our garden. It’s still not finished, but you get a good idea on how it will work out.

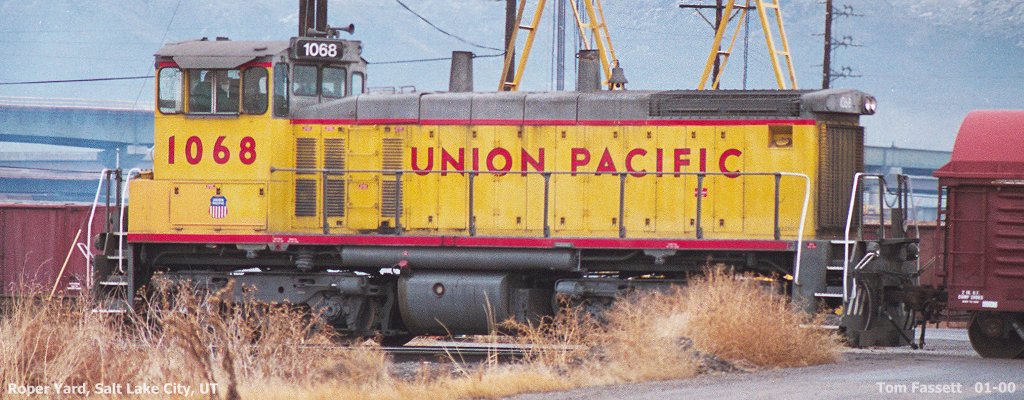

We will paint it to match the Union Pacific colors, like on the included picture of a real EMD SW1500.

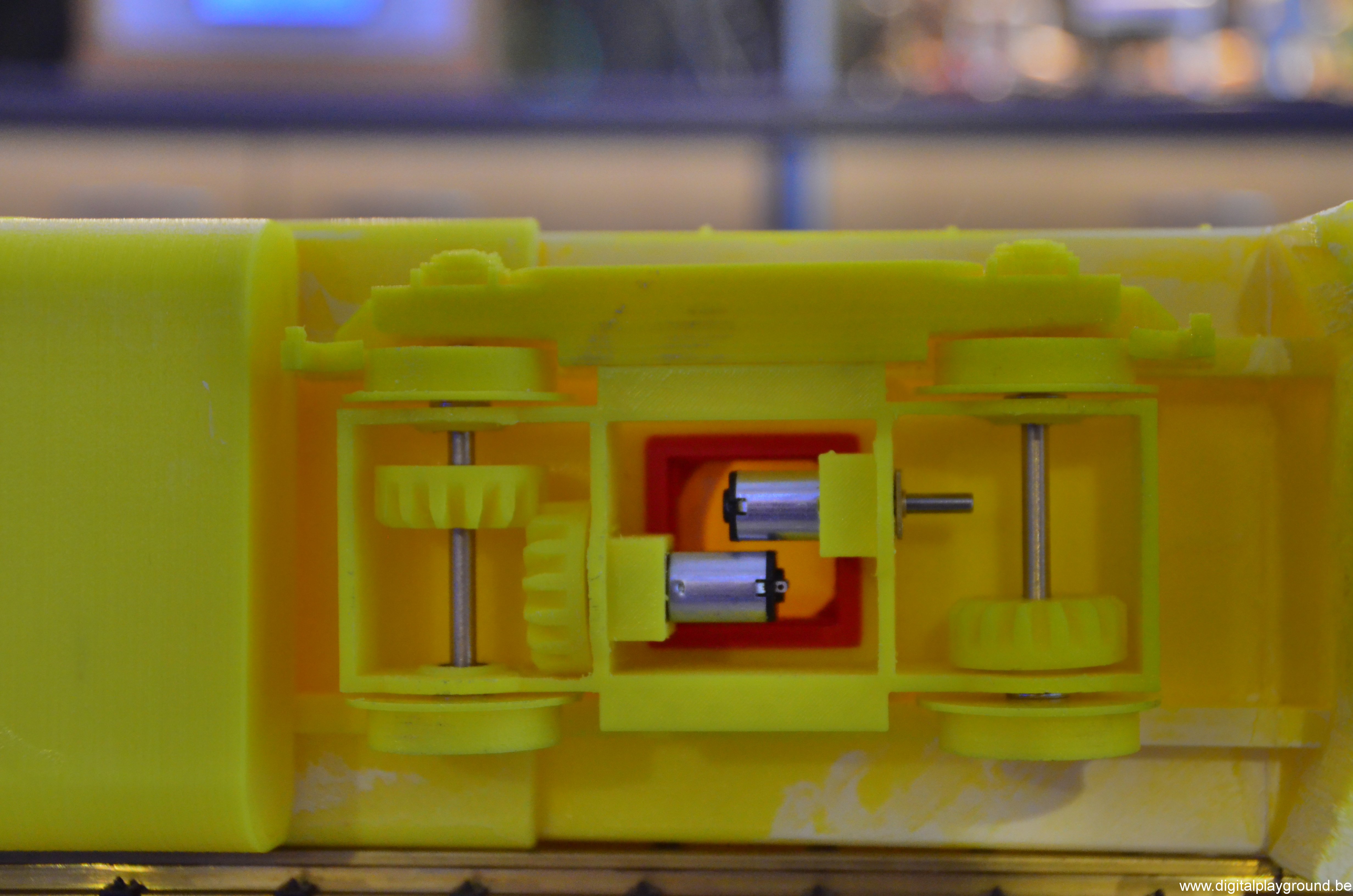

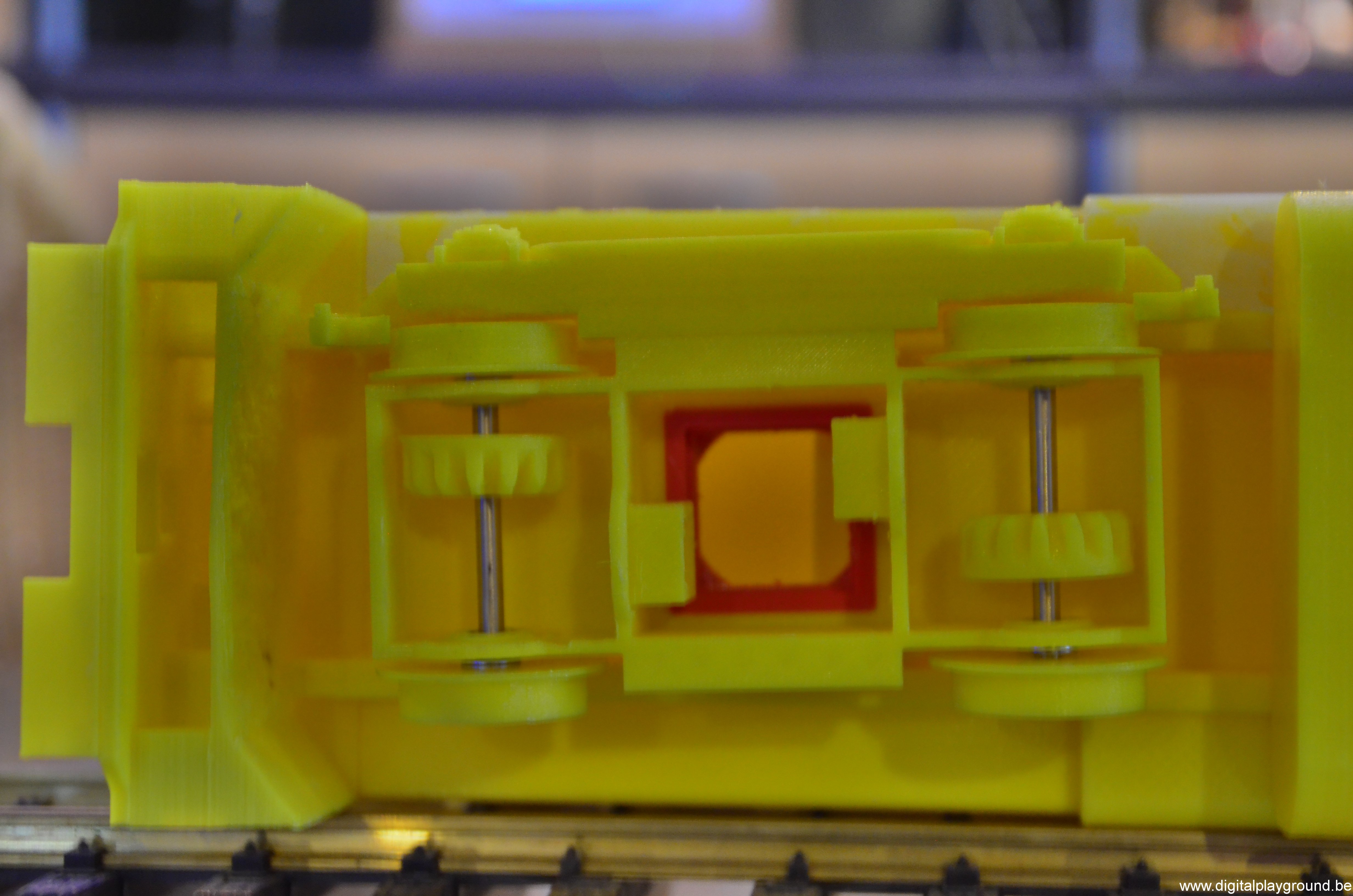

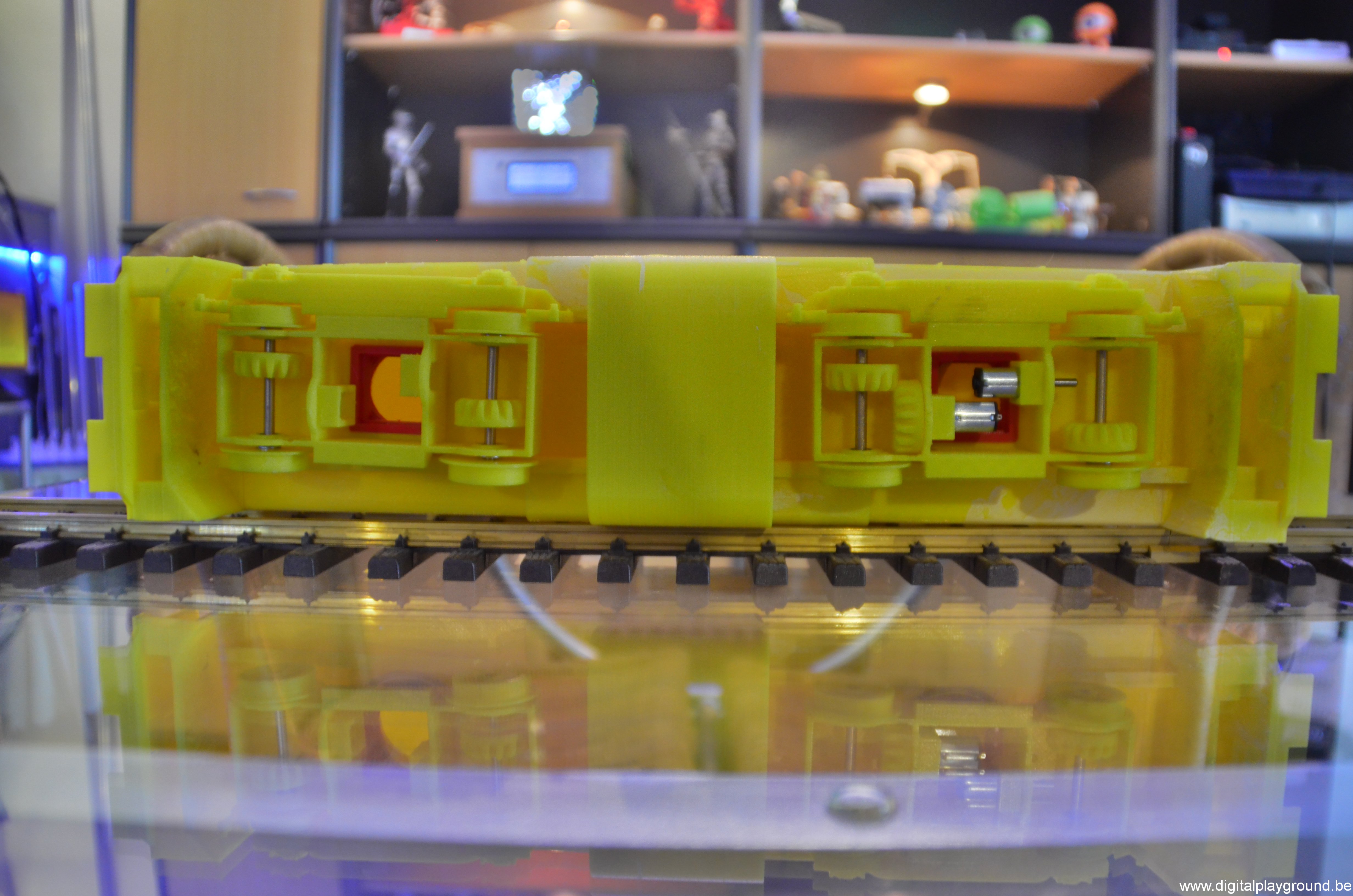

Still waiting for the motors to arrive from China, a small motor with a 1:50 reduction gearbox, will be strong enough and will deliver 400 RPM. 4 of these motors will be fitted in, to deliver the torque to pull about 15 railway cars behind the locomotive 🙂

Furthermore, I still need to design a PCB/electronics for the lighting, sound, speed/direction, automated couplers and wifi control
(to control the loc with an iPad)

To be continued …

0.00 avg. rating (0% score) - 0 votes

About Kris

I'm born on april 3th, 1974 in Leuven (Belgium). My love of my life is my lovely Christel Pauwels, with who I'm sharing love, my life, a nice house and lots of mutual hobbies and interests. (electronics / (model)trains / travelling / enjoying life / mechanics etc ...)
This entry was posted in Blog, Mechanics, Railroading. Bookmark the permalink.

2 Responses to 3D-printed EMD SW1500 locomotive (Scale 1:32) for the garden railroad

  1. Robert Wooley says:

    Kris. Thanks, i am also building the Loco
    I await your update info
    regards
    Robert
    Sydney, Australia

    • Kris says:

      Hi Robert,

      Thanks for you message 🙂
      I will release my files as soon as the motors from China arrive and the train made his first test-run in the garden 🙂

      best regards,
      Kris
