Okdo Rock 5B – better then a RPI4 ?

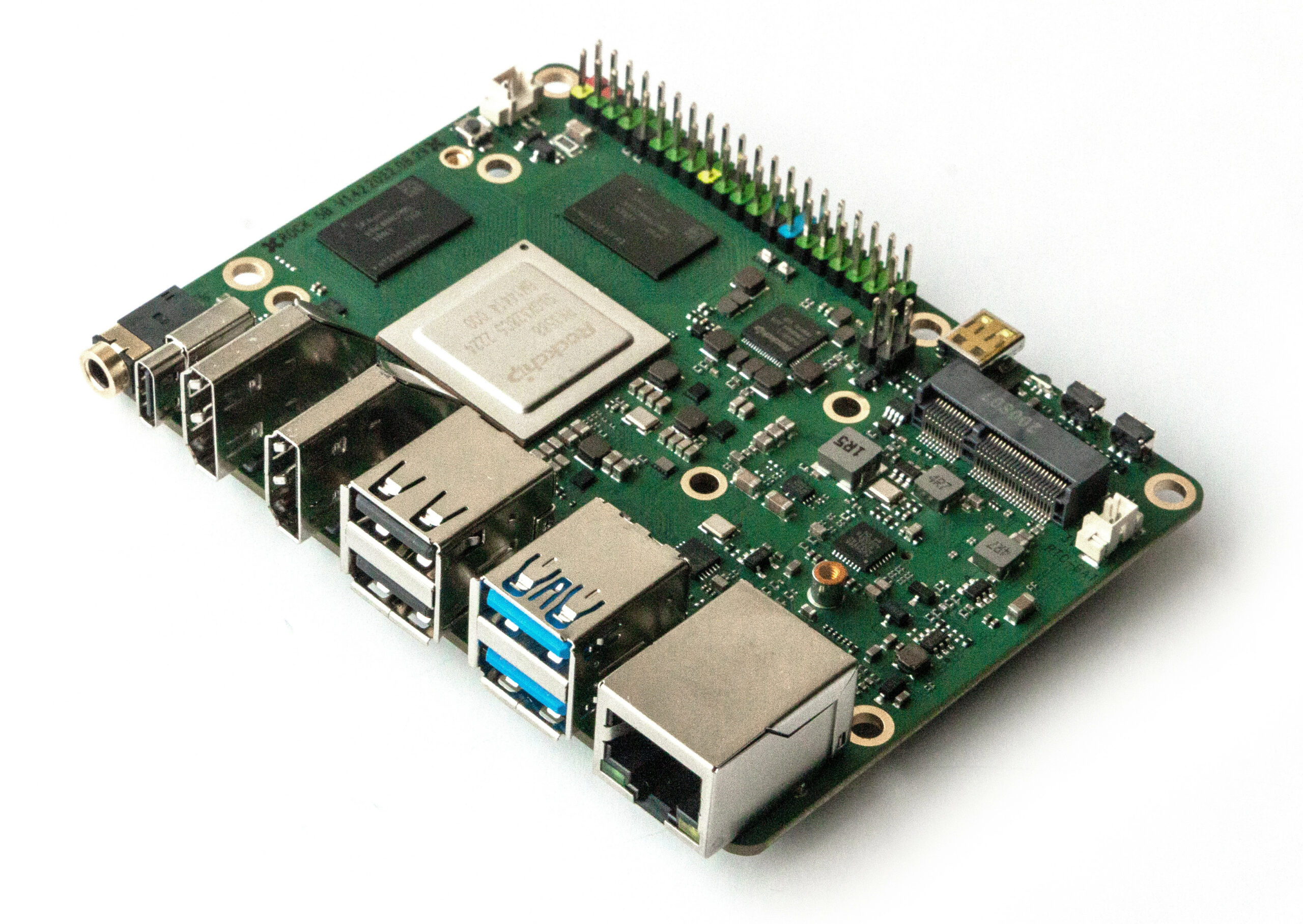

I recently bought an Okdo Rock 5B 8GB.
If you look at the specs, it’s a “better” alternative then a RPI4:
– Faster CPU
– 2x HDMI output, supports 8K60p
– HDMI input that supports 4K60p
– SD/EMMC and M.2 2280 SSD support
– M.2 2230 for SATA / Wifi(6) / SDIO / PCM etc …
– Ethernet with support up to 2.5 Gbps

So, I’m running Debian on this board, and it “feels” more like a “desktop” machine, then a RPI4 does …

SoCRockchip RK3588
ProcessorArm DynamIQ (Quad Cortex – A76 @ 2.2/2.4GHz, Quad Cortex – A55 @ 1.8GHz)
GPUArm Mali G610MC4 GPU, supporting OpenGL® ES1.1, ES2.0, and ES3.2, OpenCL® 1.1, 1.2 and 2.2, Vulkan® 1.1 and 1.2,
and embedded high-performance 2D image acceleration module
Memory8GB 64bit LPDDR4 RAM
Power RequirementsUSB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A.
5V Power applied to the GPIO PIN 2 & 4.
The recommended power source capacity is at least 24W without a M.2 SSD or 36W with a M.2 SSD.
HDMIDual HDMI ports supporting displays up to 8Kp60 resolution and 4Kp60
Micro-HDMI input port supporting up to 4Kp60 resolution
USB2x USB2 HOST ports
1x USB3 HOST port
1x USB3 OTG/HOST port
MIPI1x 4 lane DSI, 1x 4 lane CSI
StorageMicro SD / eMMC / SSD
On/Off Power ButtonYES
SoftwareFull implementation of the Arm architecture v8 instructions set
Debian/Ubuntu Linux support
Android 12 support
RKNPU2 NPU software stack
Hardware access/control library for Linux/Android
TemperatureOperation temperature: 0~50 ℃
Storage temperature: -20~80 ℃
